Overview
Engineering Before the First Wire
Most marine electrical work is reactive. Something fails, someone fixes it. A new piece of equipment goes in where there is room, wired to whichever circuit is nearby and has a breaker with capacity to spare. Over years and multiple owners, a boat's electrical system can become a record of every decision that was made in the moment rather than by design.
We take the opposite approach. Before we touch a wire on any project, we produce a complete design: a load analysis, a one-line electrical diagram, and a reviewed parts list. The owner sees exactly what is going into the boat and why, and signs off on that plan before the first component is ordered. Nothing is improvised on the vessel.
This is the service for projects that require comprehensive design work across the whole vessel: complete rewires, repower projects, new high-load circuits for liveboard upgrades, engine room electrical rebuilds, and jobs where multiple systems need to be integrated and engineered together rather than handled piecemeal.
The Design Process
It Starts on Paper
Every project we engineer begins with two documents produced before any physical work starts: a load analysis and a one-line electrical diagram. These are not internal working notes. They are formal deliverables reviewed with the owner as part of the project kickoff.
Pre-Installation Deliverables
- Load analysis: A complete accounting of every electrical load aboard, both existing and planned, with their rated current draw and estimated daily runtime. We calculate best-case and worst-case 24-hour consumption cycles so the system is sized to the actual life aboard rather than to a theoretical average.
- One-line electrical diagram: A schematic showing every circuit from the battery bank to the load, including protection devices, wire gauges, bus connections, and disconnect points. This diagram is drawn before installation begins and reflects the intended design, not a description of what was already done.
- Parts list with owner review: Every component specified for the project, with manufacturer, model, and rated specifications, reviewed with the owner before ordering. No substitutions are made without discussion. The owner knows exactly what is going into the boat.
This upfront work takes time, and it is time well spent. Problems that would have been discovered mid-installation, when fixing them means pulling installed wiring or returning equipment, are identified and resolved at the design stage where the cost is a conversation rather than a change order.
Common Projects
What Falls Under This Category
Engineered electrical systems covers the range of projects that require comprehensive design work rather than isolated component installation. These are the jobs where getting the system right means thinking about the whole boat, not just the device being added.
Typical Project Types
- Complete rewires: Older vessels often carry decades of accumulated electrical decisions made by previous owners, previous technicians, and previous equipment. Wire that cannot be traced, circuits that are unprotected or undersized, and connections that have corroded past the point of reliable operation are all candidates for a full replacement. We design the new system from scratch, run new conductors, and remove the old wiring completely rather than layering new work on top of an unreliable foundation.
- Repower and engine replacement: Swapping an engine changes the electrical interface between the propulsion system and the vessel. Engine instruments, alternator output, engine controls, fuel systems, and cooling alarms all need to be reconfigured or rebuilt for the new powerplant. We design that interface to the new engine's specifications rather than adapting old wiring that was not designed for it.
- Liveboard and high-load upgrades: Induction cooktops, electric water heaters, air conditioning, watermakers, and washing machines are all common additions on liveaboard vessels. Each requires a properly rated dedicated circuit, correct conductor sizing for the run length and load, appropriate protection devices, and integration with the existing system in a way that does not compromise the circuits already aboard.
- Engine room electrical rebuilds: Engine spaces present specific challenges: heat, vibration, fuel and oil vapor, and the proximity of high-current wiring to flammable materials. Wire routing, protection from chafe and heat, connector selection, and fusing strategy all require more attention in an engine room than in a cabin. We design and build engine room electrical to the elevated standard the environment demands.
- Multi-system integration: When solar, lithium batteries, an inverter, shore power, and a generator all need to coexist and cooperate on the same vessel, the integration between them requires careful engineering. Charging priorities, automatic transfer logic, battery protection coordination, and monitoring all have to be designed as a system rather than configured device by device.
Standards
Built to ABYC

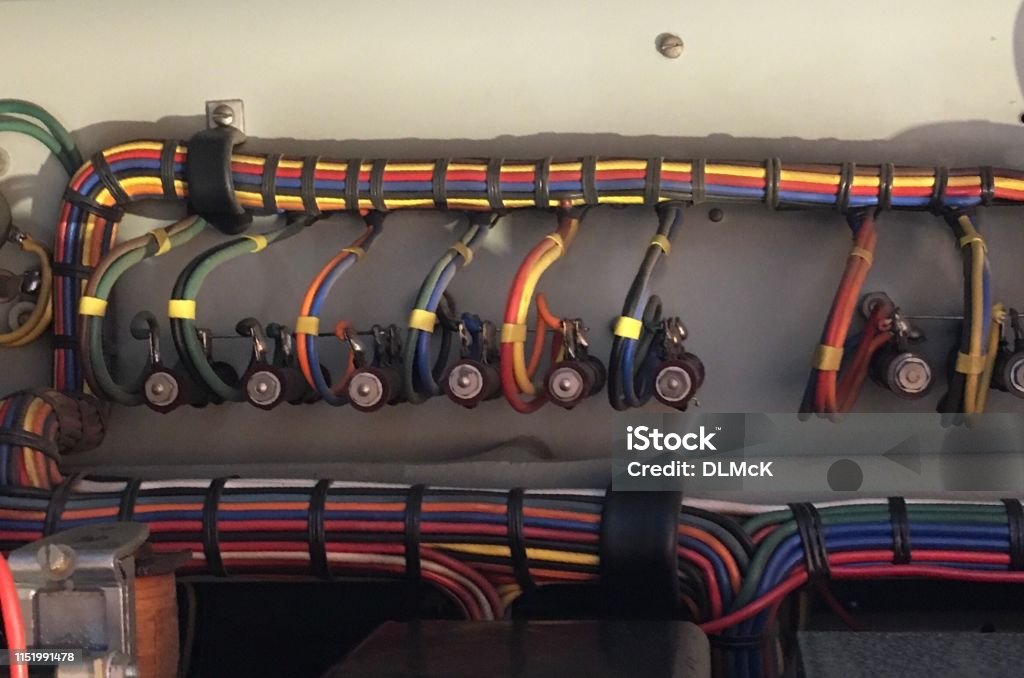

ABYC (American Boat and Yacht Council) publishes the standards that define correct marine electrical installation. These are not vague recommendations. They specify minimum wire gauge for given loads and run lengths, maximum distance between a conductor and its overcurrent protection, bus bar construction requirements, color coding conventions, connector types, and dozens of other details that collectively determine whether a system is safe and serviceable.
We engineer to ABYC standards on every project. For an owner, that means the system in their boat was built to a documented, auditable specification rather than to one technician's judgment call. For an insurance claim, it means there is a defensible answer to the question of whether the installation met industry standards. For a future buyer, it means the electrical system has a known baseline they can rely on.
ABYC compliance is not a marketing claim we make and move on from. It is the engineering specification we design to before the first wire is sized, and the checklist we verify against before the system is commissioned. Every project we deliver meets or exceeds the applicable ABYC standards, and the documentation we produce reflects that.
Documentation
The Job Is Done When It Is Documented
A correctly installed electrical system with no documentation is a system that only the installer fully understands. The moment that person is unavailable, a future technician, a future owner, or the current owner trying to trace a fault is working blind. We consider the project incomplete until the documentation is in the owner's hands.
At the conclusion of every engineered electrical project, we produce an as-built documentation package. This is distinct from the pre-installation design: it reflects what was actually installed, including any field changes made during construction, the exact routing of conductors, and the final configuration of every device.
As-Built Package Contents
- Updated one-line electrical diagram reflecting final installed condition
- Component specifications for every major device: model, rated voltage and current, firmware version where applicable

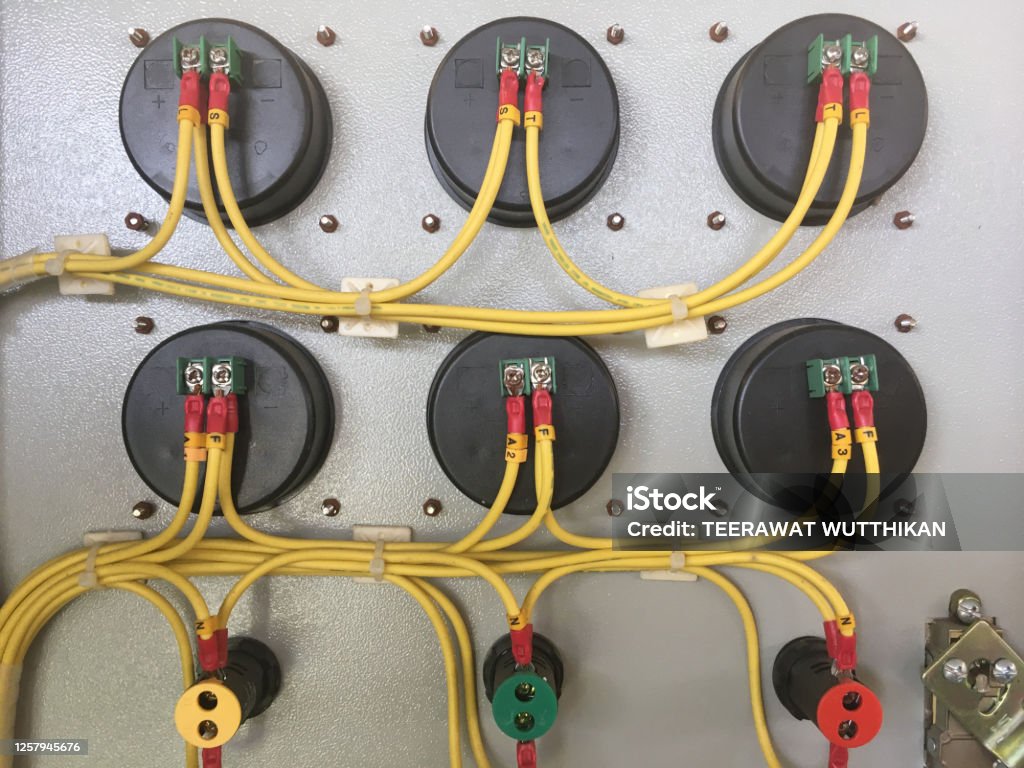

- Photographs of key connections, routing paths, and labeling
- Maintenance intervals for components that require periodic attention
- Configuration notes for programmed devices such as inverter-chargers, MPPT controllers, and BMS units
Why It Matters
- Any qualified technician can service the system without reverse-engineering it first
- Fault tracing is faster and safer when circuit paths are documented
- Documentation supports insurance claims and diligence requirements
- A documented vessel commands stronger resale value and buyer confidence
We also enter every fabricated component and specified part into our own records under your vessel's file. If a breaker, connector, or custom part needs to be replaced in five years, we can identify the exact specification and source a replacement without a site visit to measure what is installed.
Summary
Design First. Build Second. Document Everything.
An electrical system that was engineered rather than assembled is a different thing to own. The circuits are sized for the loads they carry. The protection devices are placed where the standard requires them. The wire runs are routed to avoid heat and chafe. And when something eventually needs attention, the documentation to support that work exists.
We bring the same process to a 30-foot coastal cruiser as to a 60-foot passagemaker. The scale changes. The approach does not.
